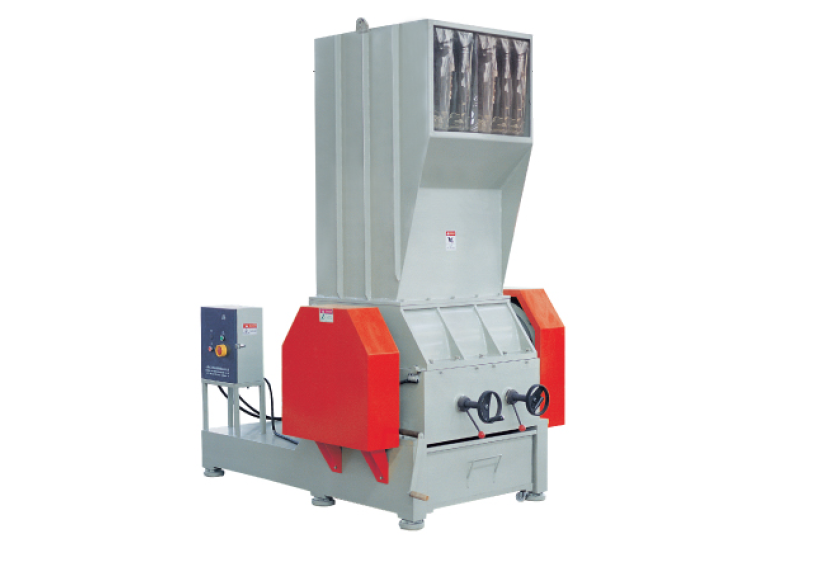

Strong crusher
Features
GWC series crusher with a beautiful exeterior design, high-quality steel structure. The rotor with new V type cutting technology not only can ensure the material be delivered in the center of the rotating blades and avoide the impact on the sidepiece, but also can make the sidepiece wearable and reduce working powder. The main axis is processed with high quality steel after verifying the balance. Good toughness, stable working state, low shaking are the main features.
This kind of crusher can be used in crushing small size pipe, sheet material, plastic material or various of packaging containers, film and so on. Gwell also can provide relevant auxiliary equipment in accordance with our customers' requirements, such as material collection pumping sets, feeding conveying system and metal segregator.
Model | Feed inlet (mm) | Main motor powr (kw) | rotors | stators | rotor diameter (mm) | output (kg/h) |
GWC300 | 300×200 | 5.5 | 6 | 2 | 200 | 100 |
GWC450 | 450×350 | 7.5-11 | 6 | 2 | 300 | 150 |
GWC560 | 560×400 | 11-22 | 6 | 2 | 400 | 300 |
GWC700 | 700×500 | 22-37 | 6-10 | 4 | 500 | 500 |
GWC800 | 800×600 | 37-75 | 6-10 | 4 | 600 | 600 |
